上柴500-2000kw
| 主要技术参数｜The Main Technical Parameters | |||||||||||
| Genset Model机组型号 |
Genset Specification 机组规格 |
Engine Specifcation 发动机规格 |
Alternator Specifcation 交流发电机规格 |
Open Type 开架型 |
Sound Proof 静音型 |
||||||
|
Power（KVA） 功率（KVA) |
Power（KW） 功率（KW） |
Engine 发动机 |
fuelsystem 燃油系统 |
Xinfeng 莘丰 |
Dimension 外形尺寸 |
Weight 重量 |
Dimension 外形尺寸 |
Weight 重量 |
|||
|
Prime 额定 |
Stand by 备用 |
Prime 额定 |
Stand by 备用 |
Model 型号 |
model 型号 |
L*W*H（mm） 长*宽*高（mm） |
（kg） |
L*W*H（mm） 长*宽*高（mm） |
（kg） | ||
| D500MK | 625 | 688 | 500 | 550 | S6R2-PTA-C | E | K354F | 3400×1615×2090 | 4880 | 4900*1800*2350 | 6500 |
| D540MK | 675 | 743 | 540 | 594 | S6R2-PTA-C | E | K354H | 3745×1615×2090 | 5280 | 4900*1800*2350 | 6800 |
| D600MK | 750 | 825 | 600 | 660 | S6R2-PTAA-C | E | K354J | 3975×1530×2025 | 6040 | 5200*1900*2350 | 8300 |
| D800MK | 1000 | 1100 | 800 | 880 | S12H-PTA | E | K354I | 4650×1660×2070 | 8150 | 20HQ | 12000 |
| D1000MK | 1250 | 1375 | 1000 | 1100 | S12R-PTA-C | E | K404F | 4590×2200×2515 | 10800 | 20HQ | 15000 |
| D1100MK | 1375 | 1513 | 1100 | 1210 | S12R-PTA2-C | E | K404F | 4590×2200×2515 | 11000 | 40HQ | 15000 |
| D1200MK | 1500 | 1650 | 1200 | 1320 | S12R-PTAA2-C | E | K404H | 5110×2205×2740 | 11300 | 40HQ | 20800 |
| D1360MK | 1700 | 1870 | 1360 | 1496 | S16R-PTA-C | E | K454C | 5520×2200×2605 | 13000 | 40HQ | 22000 |
| D1500MK | 1875 | 2063 | 1500 | 1650 | S16R-PTA2-C | E | K454D | 5540×2210×2930 | 15500 | 40HQ | 25000 |
| D1600MK | 2000 | 2200 | 1600 | 1760 | S16R-PTAA2-C | E | K454E | 5870×2210×2930 | 17500 | 40HQ | 26500 |
| D2000MK | 2500 | 2000 | S16R2-PTAW | E | K454F | 6155*2395*3450 | 18700 | 40HQ | 28500 | ||
| 主要电气性能指标｜The Main Electrical Performance | |||||||
|
电压 Voltage |
频率 Frequency |
||||||
| 稳态偏差 % | 瞬态偏差 % | 调制 % | 恢复时间 s | 频率降 % | 稳态频率带 % | 瞬态偏差 | 恢复时间 s |
| Steady-state deviation | Transient deviation | Modulation | Recovery time | Frequency drop | Steady-state frequency band | Transient deviation | Recovery time |
| ≤ ±1 | -20 ～ +20 | 0.3 | ≤ 4 | ≤ 3 | ≤ 0.5 | -7 ～ +10 | ≤ 3 |
| 电压调节范围：空载电压整定范围为 95%~105% 额定电压，Voltage Range: Voltage range: no-load voltage regulation range is 95% - 105% of rated voltage. | |||||||

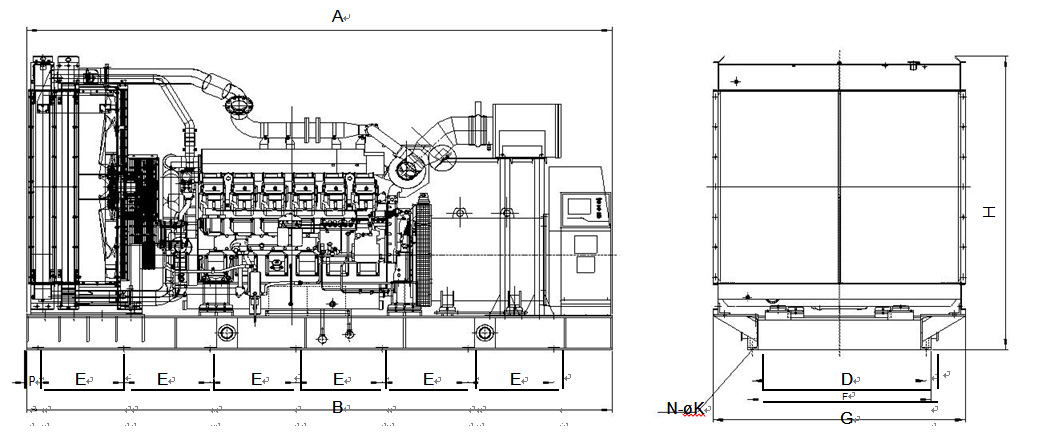

| 机组外形及安装尺寸图表｜Unit Outline and Installation Dimensions | ||||||||||
|
机组型号 Gen-set model |
A | B | D | E | F | H | G | P | N | K |
| D500MG | 3400 | 3400 | 1090 | 800 | 1170 | 1880 | 1410 | 300 | 8 | 24 |
| D540MG | 3745 | 3745 | 1090 | 800 | 1170 | 1880 | 1410 | 300 | 10 | 24 |
| D600MG | 3975 | 3975 | 1090 | 800 | 1170 | 1900 | 1660 | 200 | 10 | 24 |
| D800MG | 4650 | 4650 | 1250 | 750 | 1350 | 2070 | 1660 | 350 | 12 | 24 |
| D1000MG | 4590 | 4590 | 1120 | 750 | 1200 | 2600 | 2100 | 145 | 14 | 24 |
| D1100MG | 4590 | 4590 | 1120 | 750 | 1200 | 2575 | 1850 | 145 | 12 | 24 |
| D1200MG | 5110 | 5110 | 1520 | 750 | 1600 | 2950 | 2185 | 100 | 14 | 24 |
| D1360MG | 5520 | 5520 | 1500 | 800 | 1600 | 2605 | 1850 | 355 | 14 | 24 |
| D1500MG | 5540 | 5540 | 1500 | 800 | 1600 | 2595 | 2560 | 390 | 14 | 24 |
| D1600MG | 5870 | 5870 | 1500 | 800 | 1600 | 2930 | 2395 | 150 | 14 | 24 |
| D2000MGE | 6155 | 6100 | 1500 | 800 | 1600 | 3150 | 2395 | 300 | 14 | 24 |
| * 以上尺寸仅供参考，如有更改恕不另行通知。*The above dimensions are for reference only, subject to change without notice | ||||||||||
